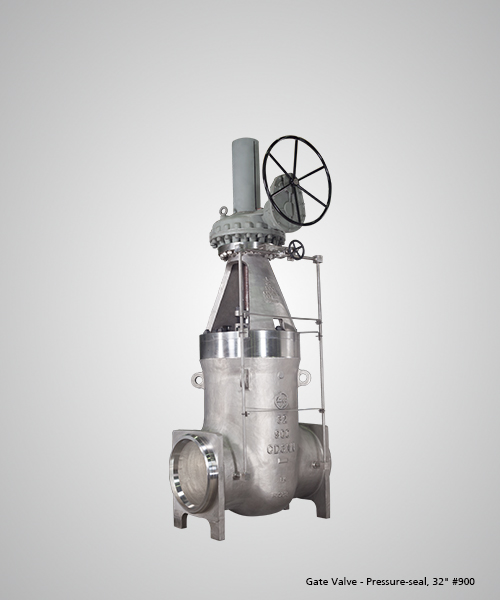

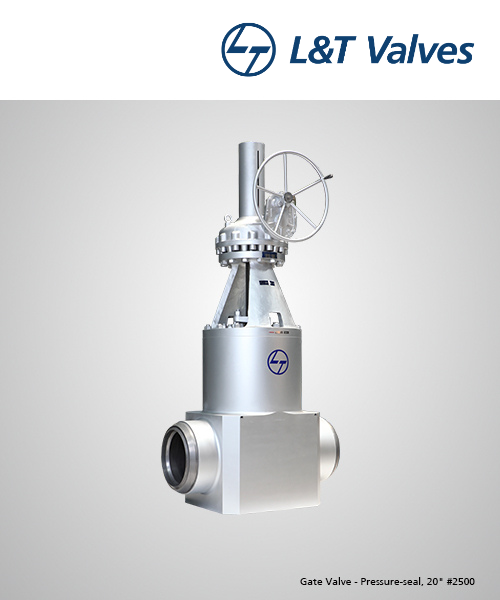

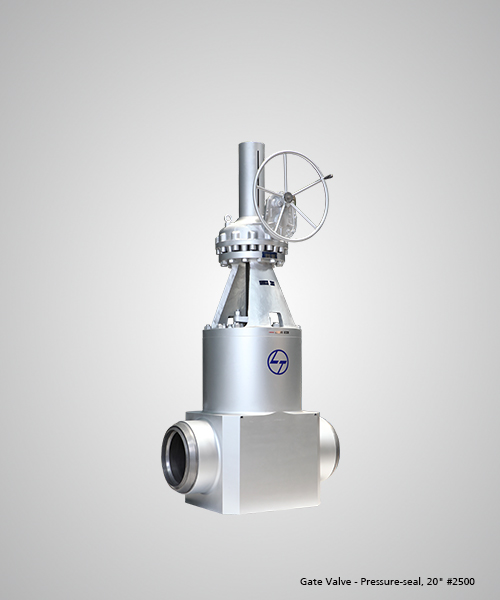

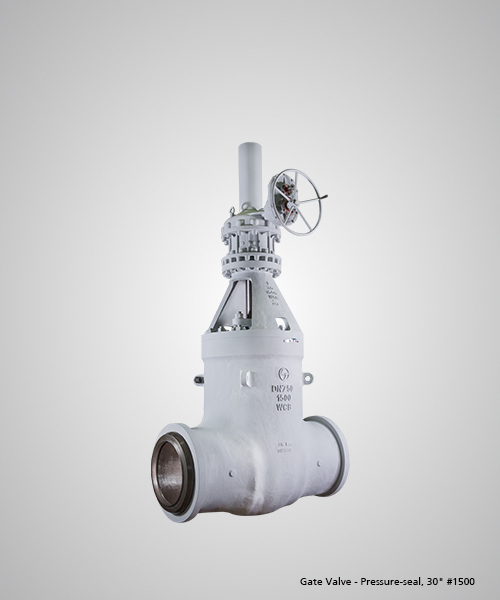

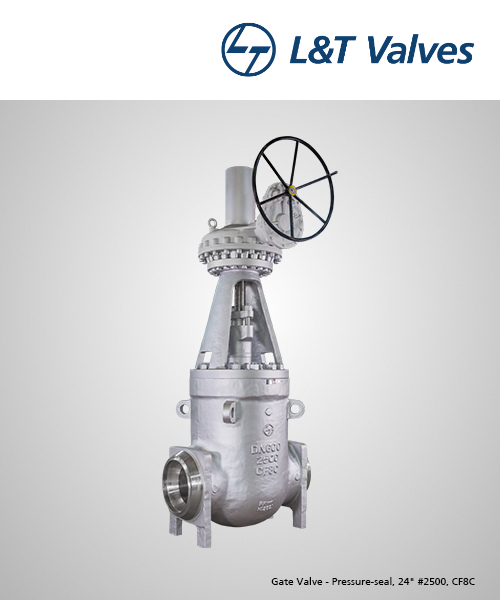

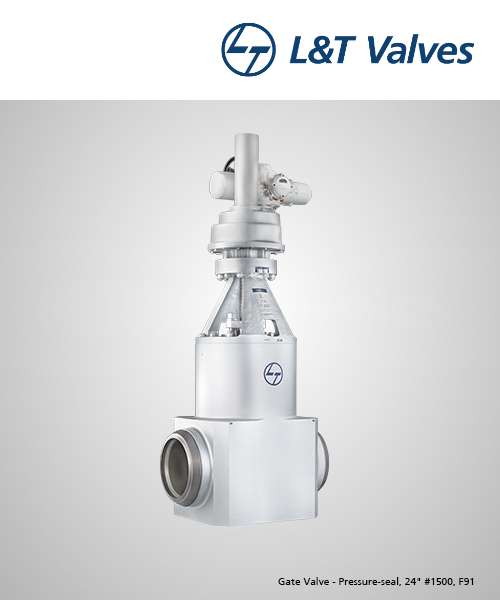

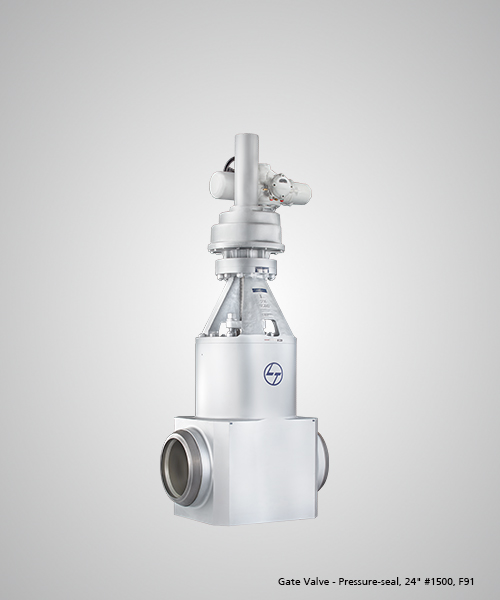

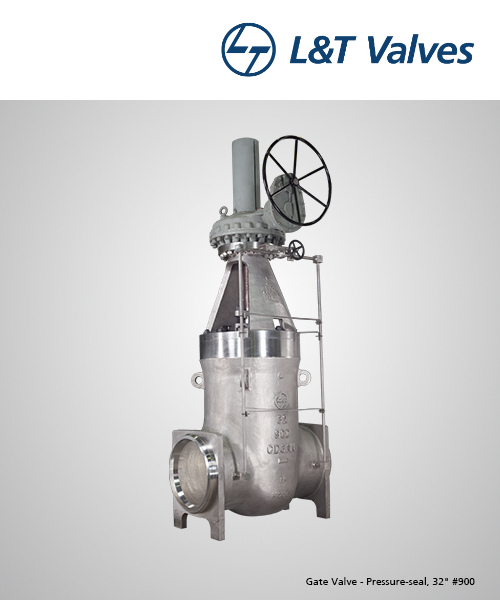

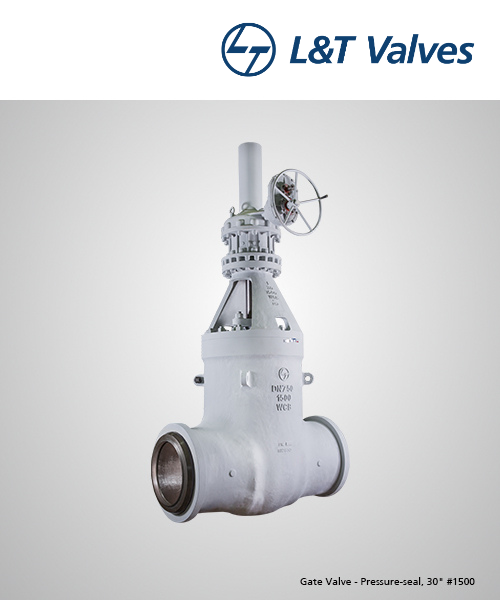

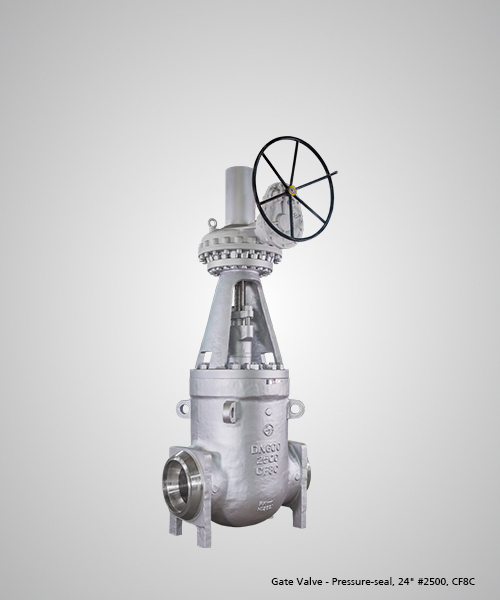

Gate Valves - Pressure-seal
| Size | 3" to 42" (80 mm to 1050 mm) |
| ASME Class | Class 600 to 4100 |
| Design Standard | ASME B 16.34, API 600 |
Beyond Standards:
- Pressure-seal Gate Valve design conforms to ASME B 16.34.
- The design was successfully validated by conducting in-house High Pressure High Temperature (HPHT) Gas Tests on ultra-high pressure valve prototypes.
- Flow Interruption Test successfully conducted on 8" Class 600 Pressure-seal Gate Valve suitable for Main Stream Isolation Valve (MSIV) service in nuclear power plants - at Areva, Germany.
- Fugitive Emission - 14" Class 2500 Pressure-seal Gate Valve (test pressure of 431 bar at ambient and 289 bar at 400 degree C) has been tested successfully as per ISO 15848-1, endurance Class CO2 and Tightness Class BH
- CE Marking – Meets requirements of Pressure Equipment Directive 2014/68/EU, Annexure III, Module H
- Atex - Meets requirements of Atex Directive 94/9/EC (ATEX), category 2 non-electrical equipment
- SIL3 Safety Integrity Level for Automated Valves
- Pressure-seal Gate Valves (up to Class 2500) used in Oil & Gas industry tested to ISO 15848-1 Class BH
- Pressure-seal Gate Valves successfully tested to Shell Design Validation Test 77/300 and witnessed by Shell Inspectors
Features that Add Value:
- Valves in intermediate classes reduce total cost of ownership
- Pressure-Seal mechanism utilizes line pressure to enhance seal; ensures sealing integrity at higher operating pressures.
- Higher hardfacing thickness (3 mm) to ensure consistent hot hardness
- Disc guides hardfaced for longer life
- Customised deposition process in F91/ C12A valves to avoid delamination of hardfaced surfaces
- Live loading of bonnet bolts for F91/ C12A valves
- Special high purity graphite packing (seven rings) provided for pressure rating > Class 2500 in Power applications
- Live loading of bonnet bolts and gland bolts for all valves in F91/ C12A construction
Versatile Solutions:
- Available in a cast and forged steels and exotic metallurgies for a wide variety of applications

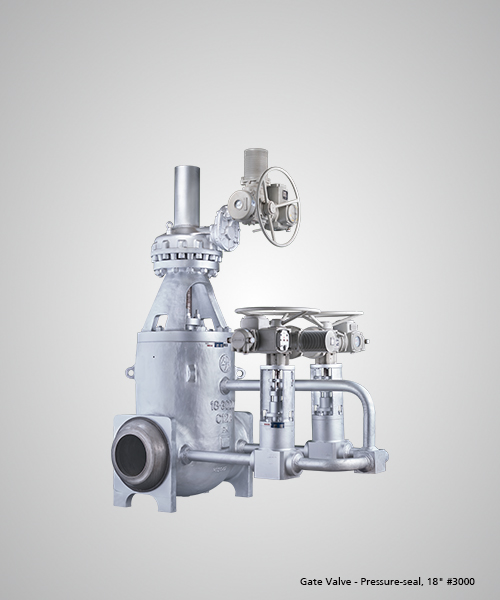

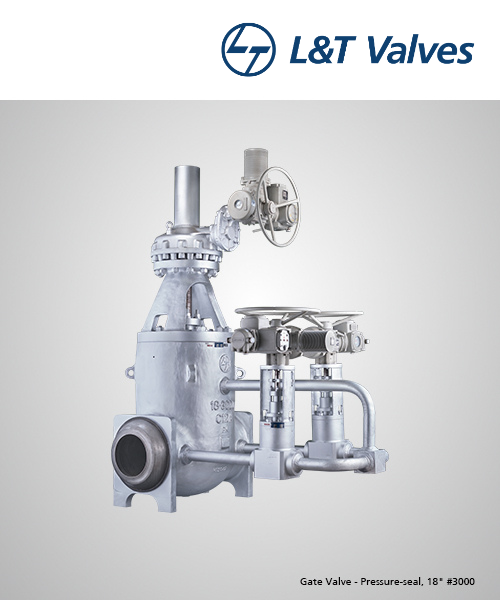

- By-pass arrangement provided for over-pressure protection based on customer requirement
- Accessories: Heat Dissipation Bonnets, Dashpot Arrangement, Limit Switches, Extension Spindles and Position Indicator
- ValvTrac™ RFID tagging offered for reliable digital traceability
