Floating Ball Valves
All Products
Floating Ball Valves
| Size | ¼" to 8" (8 mm to 200 mm) |
| ASME Class | Class 150 to 2500 |
| Design Standard | ISO 17292, API 608, API 6D |
L&T Valves manufactures a versatile range of Process Ball Valves in single, two and three piece constructions. The valves are available in full-bore and regular-bore designs, in a variety of end connections and materials to suit customer requirements.
The valves are of floating-ball design where the ball moves towards the downstream seat, under pressure, to effect a tight seal.
Salient Features:
- Fire-safe to ISO 10497 and API 607
- Mirror-finished solid stainless ball
- Fine-grained PTFE seats
- Cavity Pressure Relief mechanism
- Blowout-proof stem
- High integrity stem sealing – Belleville springs compensate for wear and thermal expansions
- Antistatic feature
- Actuator-mounting flange conforms to ISO 5211
- SIL3 Safety Integrity Level for Automated Valves
Versatile Range:

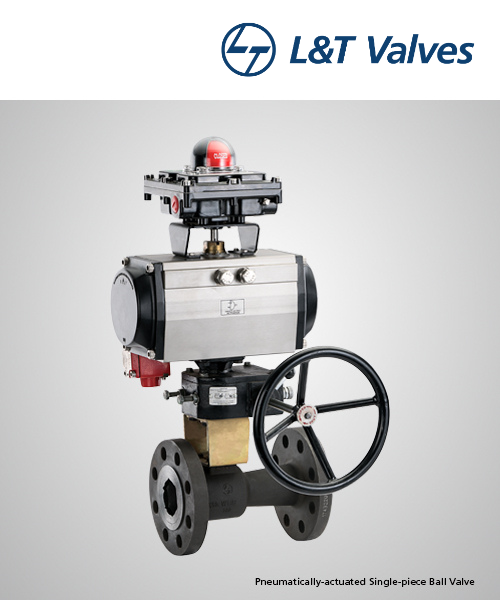

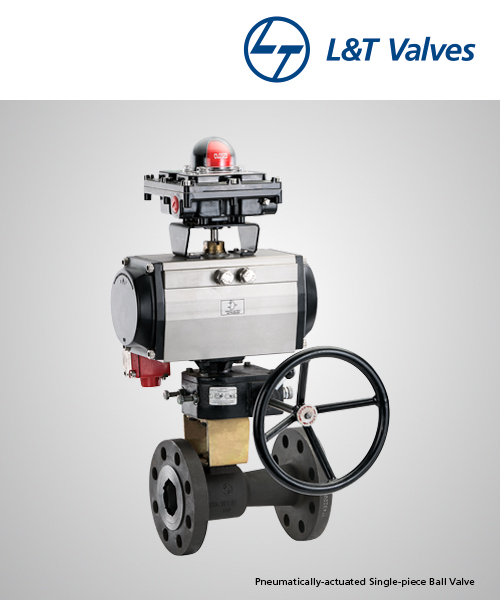

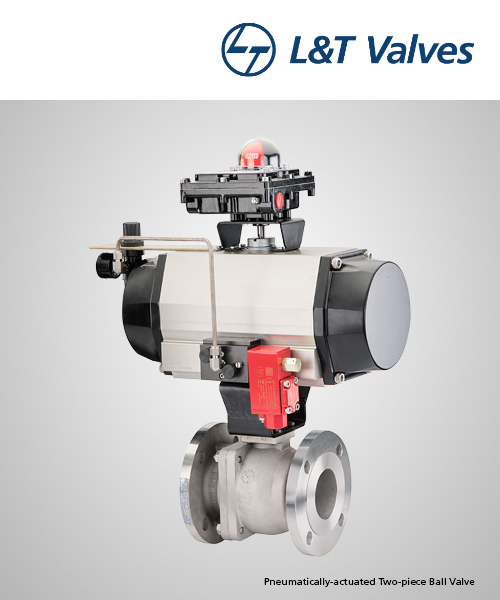

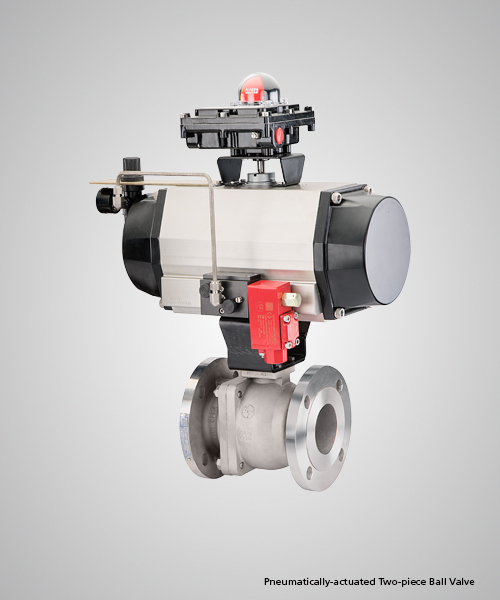

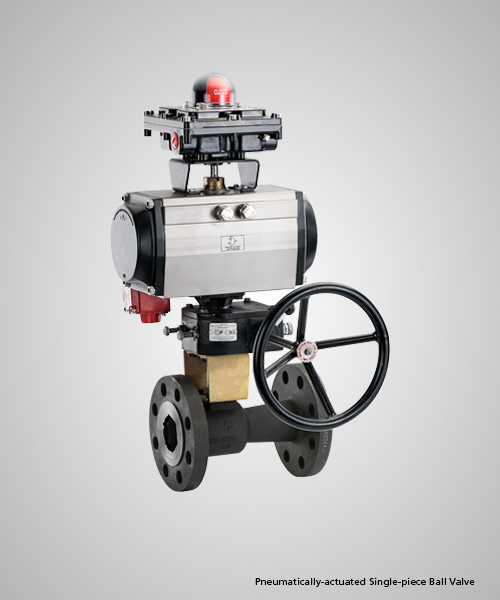

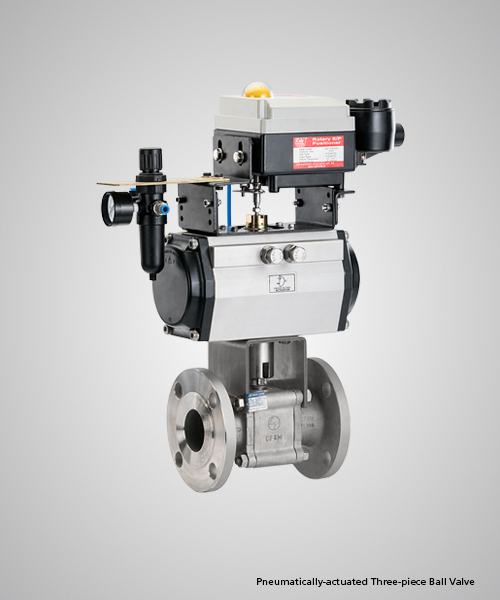

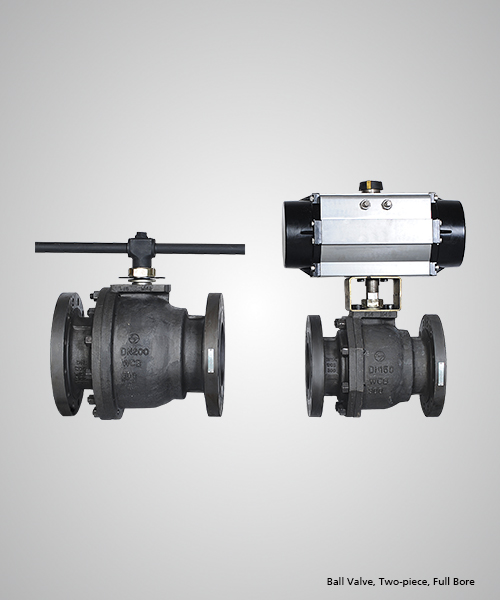

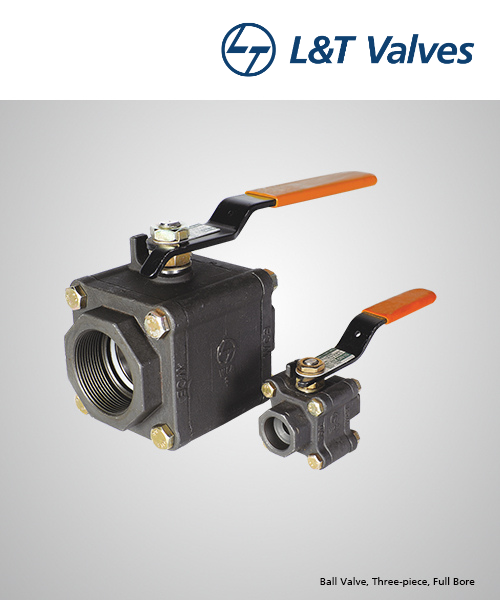

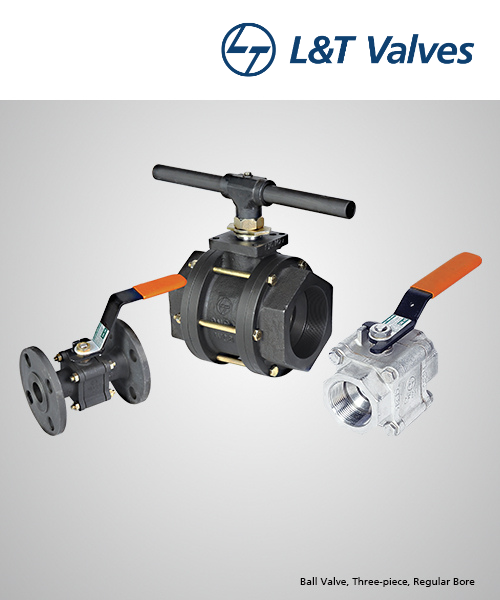

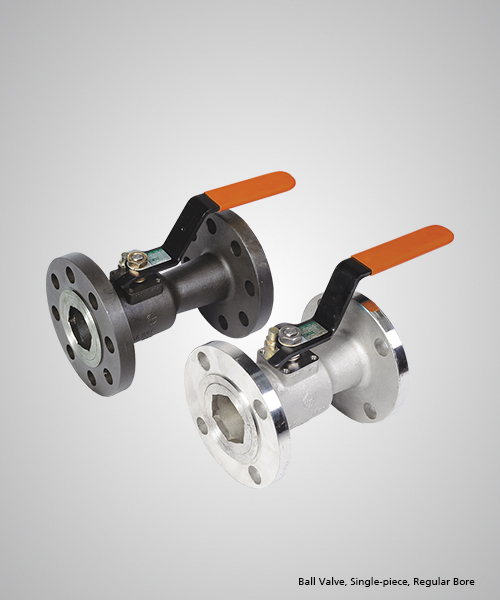

- Single, two and three piece constructions

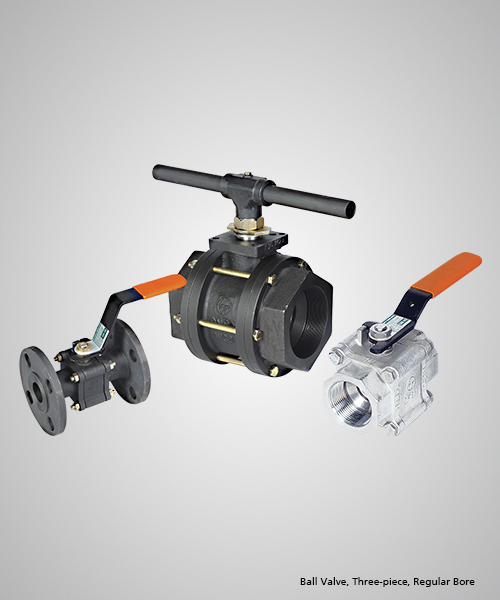

- Full-bore and regular-bore designs
- Soft and metal-seated
- Offered in carbon steel, stainless steel and duplex stainless steels
- Screwed, socket-weld and flanged ends
- ASME classes up to 2500
- Variety of actuation options
